ESD Workbench

One key item of any ESD protected area is an ESD workbench. The work bench provides the basis for an ESD protected environment.

    Home   » Construction & manufacture » this page

ESD Tutorial Includes:
ESD Basics     How ESD affects electronics components     Protecting against ESD     ESD protected area     ESD workbench     ESD work mat     ESD wrist strap     ESD clothing     ESD storage     ESD process     ESD on a budget     Design to combat ESD

A workbench is the key area for many ESD protected areas. The ESD workbench provides many of the elements for the basis of an ESD protected area. Although many other elements are needed, having a good ESD workbench is key.

Not only does a typical ESD workbench provide a static dissipative surface on which to work, but it also provides suitable connection points for other elements of the static protected environment.

ESD workbenches can be obtained from a variety suppliers - a search on Google reveals a large number of manufacturers and suppliers.

Static dissipative surface

The key to a operation of the ESD work bench is the surface of the bench. Original concepts for ESD protected workbenches used conductive surfaces. However these are far from ideal from two viewpoints:

  • High impedance prevents short circuits:   The conductive surface will short out any connections making operation and testing of the circuit impracticable.
  • High impedance leaks charge more slowly:   The conductive surface will provide a low impedance discharge path that will give a very rapid discharge, resulting in high currents flowing and possible damage to the circuitry.
  • Safety:   A conductive surface connected to wrist straps and the like could present a safety hazard should the ground become live. In the very unlikely event of the ground connection of the bench becoming live and hence the connections to the wrist straps etc, the high impedance becomes a much safer option.

In order to provide the correct environment for an ESD workstation, an ESD work bench should have a static dissipative surface.

A further reason for having a high resistance dissipative surface rather than a fully conductive surface is that of safety. If high voltages were present in a system, then accidentally touching a conductive work surface and a high voltage source could be dangerous. Accordingly safety precautions necessitate that a high resistance dissipative surface is used.

Typically an ESD protective work surface should have a resistance value of <1.0 x 109 Ω when tested according to ESD S41. (ANSI/ESD S 20.20), but having a lower limit of 1.0 x 106 ohms as recommended in ESD-ADV 53.2. This is for two reasons, namely for preventing a rapid discharge of any static that may cause damage, and secondly for safety reasons as mentioned above.

ESD workbench

An ESD work bench is one of the central elements within a full ESD protected area for use within an electronics manufacturing or repair facility. It is necessary that the ESD work bench is able to provide a full protected environment for any electronics assemblies that require work on the ESD work bench. Accordingly its performance is critical within the overall facility.

The ESD workbench can be seen to consist of a number of different elements:

  • Static dissipative work surface:   The primary element of any ESD work bench is the static dissipative work surface.
  • Shelves:   As static can build up anywhere on a work bench, it is essential that all elements of the bench are static dissipative. As items, either electronics assemblies, or tools may be placed here the shelves need to be part of the ESD protected area. Also if tools are placed on a non-ESD dissipative surface, attract static, and then they are used to work on an electronics assembly, then damage could result.
  • Metalwork:   While the metalwork itself is conductive, the paint used is not normally conductive. For an ESD workbench it is necessary to use static dissipative paint to prevent any sudden discharges.
  • Cupboards:   Many work benches have cupboards attached to them as an integral element for tidy storage. In view of the fact that electronics assemblies or other items such as tools for working on the assemblies may be stored in these cupboards, it is essential that the cupboard conforms to the same ESD standards as all other areas. Shelves should have static dissipative surfaces and any painted metalwork should have a static dissipative paint finish.
  • ESD wrist straps:   When working at an ESD work bench, it is necessary to ensure that the operator is also held at the same potential so that no discharges occur. ESD wrist straps are generally used for this.
  • Wiring:   It is necessary to ensure that all static dissipative surfaces, wrist straps, etc are all connected to a common grounding point, and wired in a suitable manner. It is essential that this is achieved effectively and in the correct manner from the viewpoint of electrical safety.
  • Monitoring system:   With wires such as the connections to ESD wrist straps, etc being in almost constant use there will be periodic failures. One method that has been adopted is to test ESD wrist straps and their wires each day. However when a problem is detected, it is possible that the operator has been causing damage to assemblies since the last time the ESD wrist strap was tested. To overcome this problem, continuous monitoring systems are available which are considerably more satisfactory. These are typically incorporated into the ESD work bench assembly.

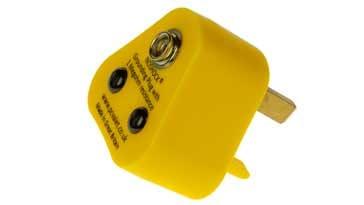

ESD grounding plug
ESD grounding plug

ESD workbench care and maintenance

With a good dissipative surface on an ESD workbench it is necessary to use and maintain it for it to provide a long effective life. Apart from testing which is covered in the paragraph below there are a few simple steps that can be taken to ensure the ESD workbench provides a long and useful life.

  • Avoid damaging the ESD dissipative surface of the work bench with sharp objects as these can significantly reduce the effectiveness of the surface, particularly if small areas become isolated by cuts, etc.
  • Clean the surfaces periodically to prevent build-up of grease or other layers that will impede the static dissipation. A plain cotton rag or cloth, with diluted ammoniated detergent is ideal. Using this, ensure that all dirt films are removed from the surface. It is always best to consult the manufacturers literature for the ebst methods for their particular surface.
  • Never use wax based cleaners or solvents that may attack the surface or modify its properties.
  • Never use abrasive cleaners. This can include abrasive cleaning agents as well as abrasive cleaning pads such as kitchen scourers. These can remove or damage the ESD dissipative surface and considerably impair its action.

It is worth implementing a regular care and maintenance schedule as dirt and grease can build up on an ESD dissipative surface over time and its performance gradually reduce. As it is difficult to visibly detect any performance degradation, and any effects may come on gradually and not be noticed, the only way to overcome this is to regularly clean and maintain the surface. Testing should also be incorporated into this schedule.

ESD work bench testing

In addition to cleaning of the work surface, periodic testing of the ESD workbench is required. This ensures that after repeated use of the connections and general infrastructure of the bench, everything is within its required tolerances and no breaks of connections are present.

Often monitors are used to ensure that wrist straps and their connections are properly operational, but periodically a complete electrical test of the bench including its ESD performance is needed.

ESD workbenches are widely used for research and development laboratories, production test areas, service and repair areas and many more. The use of a proper ESD workbench is necessary to ensure the ESD protected area is completely operational.
