The "Survival Kit" for Every Radio Bench: 24-Piece SMA Adapter Set Review

We all get caught needing an adapter to change the sex of a connection or to change to a different RF connector series, well here's an adapter set to help with your SMA connections.

Check out more electronic components:
Capacitors Connectors (RF) Op-amps Resistors Resistors (variable / potentiometers) Transistors (BJT)

Please note: There are links to products in this review and ElectronicsNotes makes a small commission at no cost to you on any sales that are made from links on this article.

If you work with RF as a radio amateur, SDR experimenter, or whether you are troubleshooting WiFi, you have inevitably run into what many call the "Connector Wall."

You have an antenna with a BNC plug, a radio with an SMA jack, and a piece of test equipment that uses N-types. We've all been there!

One possible lifesaver is a 24-Piece SMA RF Coaxial Adapter Kit from AliExpress which is marketed as a great solution to this problem. I recently picked one up to see if it belongs on a professional’s bench or if it’s just "low-cost luggage." I also wanted to use it as I find converting from one connector series to another quite difficult.

What’s in the Box?

The kit comes in a compact, compartmentalized plastic storage box (a huge plus for keeping the shack tidy). It provides a means to help prevent being scattered around the shack with no home at all!

It contains 24 different adapters, centred around the SMA standard.

The variety is impressive and provides virtually all of te combinations you might need. It bridges the gap between SMA (Male/Female) and almost every common RF standard:

N-Type: Great for VNAs and high-power base antennas.
BNC: Essential for handhelds and oscilloscopes.
UHF (SO-239/PL-259): The standard for HF and mobile rigs.
TNC & F-Type: Useful for specialized commercial gear and TV/Satellite work.
SMA to SMA: Gender changers and barrel connectors.

24PCS SMA RF Coaxial Adapter Kit

The kit provides: SMA M/F to TNC UHF BNC N F Male Female - ideal for an RF lab or ham radio shack.

Buy Now

Build quality and machining

At this price point ($20–$30 USDor equivalent), you expect corners to be cut, but the initial impressions are surprisingly solid.

Material: The connectors are brass with a mix of gold and nickel plating. The gold plating on the SMA centers is clean, ensuring good conductivity for low-power signals.
Mechanical Fit: One of the biggest risks with budget adapters is "crunchy" threads. These adapters, however, thread smoothly onto high-end gear (like my Rohde & Schwarz VNA and Yaesu handhelds) without any binding or grit.
Ruggedness: These are not "high-precision" laboratory grade (like Agilent or Huber+Suhner), but for general hobbyist and field use, they are more than durable enough.

Performance: does it affect the signal?

These connector adaptors aren't going to have the same quality build and insulation as the really top range versions costing many times as much. It's worth remembering that every adapter adds a tiny amount of loss and a potential impedance bump.

However: the small distance over which the signal is carried in these connectors is unlikely to make a huge difference. But it is always wise to understand the issues they may introduce:- a small amount of loss and also an impedance discontinuity.

But for most casual usage up to 70cms ( 450MHz) or so, these adapters should be acceptable and their imperfections are likely to outweigh the extra cost of buying the top flight adapters, most of which might cost as much as this whole set.

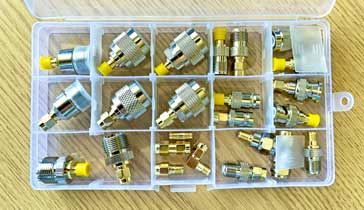

View of SMA adapters in the SMA RF Coaxial Adapter Kit

Value for money?

If you were to buy these 24 adapters individually from an electronics distributor or local ham store, you would easily spend well over $150 (or the equivalent in your currency). Buying them in a bulk kit like this brings the cost down to roughly $1 per adapter which is amazing.

Even if you only use half of the adapters in the box, the kit has already paid for itself the first time it saves you from stopping a project at 11:00 PM because you don't have the right gender-changer.

If you remember they are budget friendly, then you can allow for the imperfections and how have a really good bargain.

The verdict

Pros:

Incredible variety; covers 95% of hobbyist needs.
Solid brass construction with decent plating.
Includes a storage case to prevent "connector drawer chaos."
Unbeatable price-to-utility ratio.

Cons:

Not suitable for high-precision laboratory measurements and certainly not for measurements above about above 1GHz.
The storage box latches can be a bit flimsy.

Final Thought: This isn't just a "good to have" item; it’s a lab essential. It has certainly got me out of trouble a few times recently, especially when trying tomate my V/UHF HT to my power meter which has N-type connectors, and for many other situations.

Whether you are an SDR enthusiast or a Ham Radio operator, this kit is the "insurance policy" your bench needs. It’s the difference between a successful afternoon of testing and a week-long wait for a single $5 adapter.

So overall, its a great buy, something that is exceedingly useful, but be aware of the issues and understand the effects that can be introduced, especially at the higher end of the spectrum.

24PCS SMA RF Coaxial Adapter Kit

The kit provides: SMA M/F to TNC UHF BNC N F Male Female - ideal for an RF lab or ham radio shack.

Buy Now

Final note: As with all budget RF gear, always inspect the centre pin of an adapter before plugging it into expensive equipment to ensure there are no manufacturing burrs. This can even be an issue with more expensive connectors after use.
