Oscilloscope Current Probe

Current probes are often needed to enable an oscilloscope to measure current - they use different techniques to those of the more familiar voltage probe.


Oscilloscope Tutorial Includes:
Oscilloscope basics     Oscilloscope types     Specifications     USB vs bench-top scope     How to use an oscilloscope     Scope triggering     Oscilloscope probes     Oscilloscope probe specifications

Scope types includes:     Analogue scope     Analogue storage scope     Digital phosphor scope     Digital scope     USB / PC scope     Mixed Signal Oscilloscope MSO


Oscilloscope current probes can enable oscilloscopes to measure current and thereby extend their use beyond just that of measuring voltage.

There may be many instances where a scope current probe can come in useful - anywhere that t is necessary to measure the current rather than the voltage. Sometimes the current can be measured by [lacing a small resistor inth e line and measuring the voltage across it, but this has its own drawbacks. The best option is to use a scope current probe as this will directly measure the current with less disturbance of the circuit.

Scope current probe format

The oscilloscope current probe is manufactured so that it can be clipped around a conductor. Normally there is a spring loaded clip that enables the scope probe to be swiftly clipped around the cable.

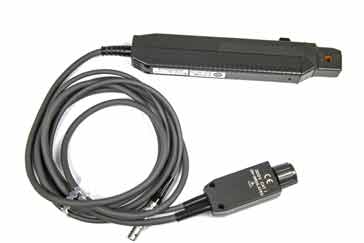

A typical oscilloscope current probe
A typical oscilloscope current probe

The hole in the probe that clips around the cable under test can be seen on the right of the main probe body.

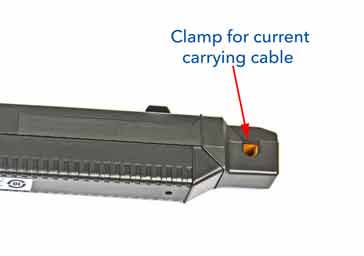

Close up of the cable camp on the oscilloscope current probe
Close up of the cable camp on the oscilloscope current probe

Operation of a scope current probe

Current probes sense the current flowing through a conductor and convert it to a voltage that can be viewed and measured on an oscilloscope.


Sometimes using the maths functions on a scope along with a voltage measurement on another channel it is possible to measure power, as well as looking at the phase differences.
