RF Coax Cable Types, & Specifications: UR & RG

Tabular data from both the UR and RG systems for coax cable providing data on size, impedance, loss propagation constant, etc for the more commonly used types of RF coax cable.


Coax Tutorial Includes:
Coax feeder     Coax specifications overview     Coax impedance     Coax loss / attenuation     Coax power rating     Coax velocity factor     Coax environmental     Coax installation tips     Coax cable types     Tips for choosing right coax cable     Buying TV coax: points to note


There are many different varieties of coax cable that can be bought. Different types obviously have different performance specifications.

The choice of a particular type of coax cable depends on a number of factors – each choice being dependent upon the particular requirements for where it is to be used.

Coax cable feeder

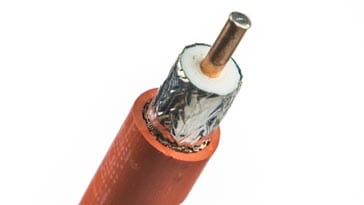

Typical coax cable feeder

RG and UR coax cable references

Over the years systems developed whereby standard number systems. This enabled coax made by different manufacturers to conform to the same standard.

Over the years two basic systems evolved for defining RF cables. One originated in the United Kingdom and its type numbers all start with UR. The other system is American with type numbers commencing with the letters RG.

  • UK UR system for coax cable types:   The UR system as defined in the UK and is still widely used for coaxial cable. UR standard for Uniradio, and later the URM series stands for Uniradio Metric.
  • USA RG systems for coax cable types:   The RG series was originally used to specify the types of coax cables for military use, and the specification took the form RG (RG from Radio Guide) plus two numbers. In some instances these numbers were followed by the letter U which indicated it was for multiple uses. These types of coax cable were all listed in the MIL-HDBK-216 which is now obsolete. Although full MIL specifications are now officially used for specifying most components for military use, the RG series of RF cables continued to be used because of its widespread acceptance. However it should be noted that the RG specifications are no longer maintained so there is no complete guarantee to the exact specification for the particular type of coax cable

Coax cable data summary

Data of some of the more commonly used types of coax or coaxial cable: most of these RF cables are easily available from RF coax cable stockists.:


Coax Cable Data
Coax Type Characteristic
impedance
Outside
diameter
Velocity
factor
Atten
@ 100 MHz
Atten
@ 1000 MHz
Comments
RG4 50.0 5.74 0.66 Braid shield
RG5/U 52.5 8.4 0.66 1.0 3.8 Braid shield
RG6A/U 75 8.4 0.66 1.0 3.7 Braid shield
RG9/U 51.0 10.7 0.66 0.66 2.4 Braid shield
RG10A/U 50 12.1 0.66 0.66 2.6 Braid shield
RG11A/U 75 10.3 0.66 0.76 2.6 Braid shield
RG12A/U 75 12.1 0.66 0.76 2.6 Braid shield
RG20A/U 50 30.4 0.66 0.22 1.2
RG22 95 10.7 0.66 0.75 1.5 Braid shield
RG23 125 24.0 0.66 0.52 2.0 Braid shield
RG24 125 25.5 0.66 0.52 2.0 Braid shield
RG34 75 16.0 0.66 0.46 1.8 Braid shield
RG58C/U 50 5.0 0.66 1.8 7.6 Braid shield
RG59B/U 75 6.1 0.66 1.2 4.6 Braid shield
RG62A/U 93 6.1 0.84 0.9 2.8 Braid shield
RG63 125 10.3   0.6 2.1 Braid shield
RG79 125 12.1   0.6 2.1 Braid shield
RG108 78 6.0 1.1 3.8 Braid shield
RG111 95 12.1   0.75 2.6 Braid shield
RG114 185 10.3   1.1 3.8 Braid shield
RG119 50 11.8   0.5 1.8 Braid shield
RG120 50 13.3   0.5 1.8 Braid shield
RG122 50 4.1   1.7 5.5 Braid shield
RG213/U 50 10.3 0.66 0.62 2.6 Braid shield, polythene dielectric
RG214/U 50 10.8 0.66 0.76 2.9 Double screened braid, silver plated copper wire
RG223/U 50 5.5 0.66 1.58 5.4 Double screened braid shield




UR43 / URM43 50 5 0.66 1.3 4.46 Plain copper wire braid
UR57 / URM57 75 10.3 0.66 0.63 2.3 Similar to RG11A/U – plain copper wire braid.
UR67 / URM67 50 10.3 0.66 0.66 2.52 Similar to RG213/U – plain copper wire braid
UR74 / URM74 50 22.1 0.66 0.33 1.4 Plain copper wire braid
UR76 / URM76 51 5 0.66 1.7 7.3 Similar to RG58C/U, plain copper wire braid
UR77 75 22.1 0.66 0.33 1.4
UR79 50 21.7 0.96 0.17 0.6
UR90 75 6.1 0.66 1.2 4.1 Similar to RG59B/U
URM91 50 11.0 0.66 Double plain copper wire braid

Data for attenuation figures are typical figures and measured in dB / 10 metres.
Dimensions in mm.

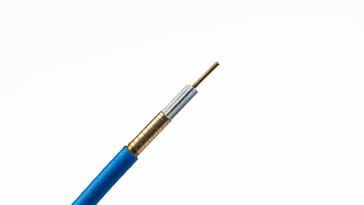

Coax cable feeder
Typical coax cable feeder

This RF cable data has been presented as a guide and no liability can be taken for any errors or mistakes in the data. Naturally every care has been taken to ensure the data concerning these RF cables is correct.
