The traditional digital multimeter (DMM) has remained largely unchanged in its core ergonomics for decades: a rectangular box sitting flat on the workbench, connected to two long test leads.

While this classic arrangement works brilliantly on a spacious electronics bench, it quickly becomes cumbersome when you are probing dense surface-mount PCBs, working overhead, troubleshooting automotive wiring harnesses, or taking quick quick-check measurements where holding two probes and trying to glance back at a stationary LCD screen requires three hands.

Enter the pen-style digital multimeter. The ANENG A3008 is a 6000-count, True RMS, pocket-sized instrument that integrates the main positive probe, display, and processing electronics directly into a single wand-like housing.

Powered by a single 1.5V AAA battery, it promises high-functionality testing, including auto-scanning, capacitance, frequency, phase sequence detection, and Non-Contact Voltage (NCV) sensing - all for an remarkably low price point.

This pen-type multimeer packs a huge amount into a very small form factor and for a very reasonable cost - but is it worth it and does the Aneng A3008 live up to all the claims for it>?

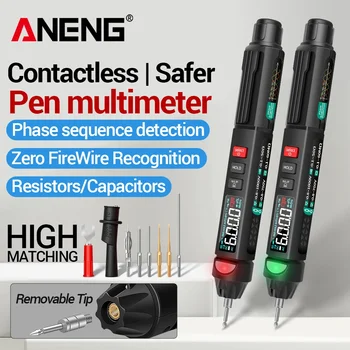

ANENG A3008 Pen Digital Multimeter

The A3008 delivers precise electrical testing with a 6000 counts digital display, ideal for accurate AC/DC voltage measurements and while providing auto range operation and intelligent sensor technology.

Buy Now

Design, Build Quality, and Ergonomics

The first thing you notice about the ANENG A3008 is its ultralight footprint. Measuring approximately 170 mm × 24 mm × 21 mm and weighing roughly 50 grams with a battery installed, it feels virtually identical in hand to a thick marker pen. The chassis is moulded from lightweight ABS plastic. While it does not feature the heavy rubber protective boot found on rugged industrial meters, it feels well-assembled with tight seam tolerances and no objectionable flex.

The key ergonomic feature of the pen-type form factor is single-handed probe placement. The main positive probe tip is fixed permanently at the front apex of the pen. A removable soft silicone cap protects the tip when stored. At the rear base of the instrument sits a single 4mm shrouded banana jack for connecting the single negative (black) ground lead. This means you only need to guide one trailing lead with your free hand while placing the main meter tip directly on your measurement point, keeping the display screen right in your direct line of sight.

The ANENG A3008 pen digital multimeter includes a variety of screw-on probe tips in the kit:

• Standard Stainless Tip: A robust, general-purpose probe point suitable for basic mains and low-voltage testing.
• Fine-Point Fine Needle Tip: A sharp, gilded tip with an ultra-thin point (~0.3 mm) ideal for reaching tiny SMD pads, fine-pitch IC pins, or piercing insulation.
• Extended Copper Needle: Useful for deep-socket connectors and recessed terminal blocks.

The rear of the device features a twist-lock or slide-out battery compartment housing a single AAA cell. Opting for a standard AAA battery rather than button cells or proprietary lithium-ion packs is a huge practical advantage; replacements are cheap, widely available, and long-lasting given the low idle current draw of the chipset.

Display and User Interface

The A3008 uses a reverse-contrast VA (Vertical Alignment) LCD screen. Instead of traditional black digits on a grey-green background, the screen features bright white/colour digits illuminated against an inverted dark background.

The primary advantage of this display is low-light visibility. In dimly lit control cabinets, dark automotive footwells, or poorly illuminated workbenches, the digits pop with crystal clarity. The display also includes an integrated backlight that stays lit during operation, along with a small white LED flashlight angled forward at the probe tip to illuminate your test point in pitch-black conditions.

However, this display choice comes with a notable trade-off: direct sunlight performance. In outdoor environments under bright sunlight, the reverse-contrast display washes out significantly, making it harder to read than a classic reflective monochrome LCD. Viewing angles from the top and sides are remarkably good, though extreme lower angles can cause minor ghosting.

Interface controls are streamlined to keep operation simple:

• Power / SELECT Button: A long-press turns the unit on or off. Short presses cycle manually through measurement functions.
• HOLD / Backlight Button: Short-pressing freezes the current display reading. A long-press toggles the front tip LED flashlight and display backlight illumination.
• NCV / Phase Button: Switches between Non-Contact Voltage sensing, Live-wire identification, and Phase Sequence detection.

Core Measurement Capabilities and Accuracy

Despite its miniature footprint, the A3008 is a fully capable 6000-count True RMS multimeter. Below is a breakdown of its primary measurement specifications and performance characteristics:

  1. AC and DC Voltage

The unit measures DC voltage up to 1000V and AC voltage (True RMS) up to 700V. Resolution goes down to 1mV on the 6V scale, or 0.1mV when manually forcing sub-volt ranges.

Basic DC accuracy is specified at ±(0.5% + 4 digits), which is exceptionally tight for an entry-level meter. Input impedance is approximately 10 MΩ in manual mode, preventing circuit loading during delicate signal tracing.

  2. Resistance and Continuity

Resistance measurement spans from 0.1Ω up to 60 MΩ. Standard ranges up to 6 MΩ carry a basic specification of ±(0.8% + 3 digits), increasing to ±(2.5% + 3 digits) at the maximum 60 MΩ range.

The continuity buzzer is latched and features a fast response time (~20ms in manual mode). When checking traces, the buzzer sounds briskly without any annoying lag or crackle.

  3. Capacitance

Capacitance measurement ranges from 10 nF up to 60 µF. While small picofarad-range stray capacitance can cause residual baseline readings (~0.05 to 0.1 nF) on the lowest scale due to the unshielded lead geometry, testing standard coupling, decoupling, and electrolytic capacitors yields accurate results.

Measurement speed is rapid for values under 100 µF, though large power-supply smoothing capacitors (10 mF to 60 mF) naturally take 3 - 5 seconds to charge and settle.

  4. Frequency and Duty Cycle

Frequency response ranges from 1 Hz up to 10 MHz. It handles logic-level signals, oscillator testing, and line-frequency checks accurately.

  5. Temperature

An internal sensor provides ambient temperature readings from -20°C to 50°C (-4°F to 122°F). While it lacks a K-type thermocouple jack for direct thermal probe attachment, the room-temperature display is a convenient feature for checking quick ambient conditions.

Advanced Features: Auto-Scan, NCV, and Phase Sequence

What sets the ANENG A3008 apart from basic budget DMMs is its suite of automated intelligent functions.

  •   Smart "AUTO" Mode

By default, the meter powers up in fully automatic scanning mode. In AUTO mode, the internal processor continuously monitors the probe inputs and automatically switches between DC Voltage, AC Voltage, Resistance, and Continuity without any user intervention.

If you touch the probes across a battery, it displays DC Volts. Touch a mains outlet, and it displays AC Volts.

Touch a cold resistor or short circuit, and it switches instantly to ohms or continuity. For quick fault-finding on unknown points, this mode eliminates range-dial spinning.

However, because AUTO mode evaluates threshold levels (requiring >0.8V to trigger voltage mode), switching between modes adds a ~1-second settling delay.Manual mode can be selected for instantaneous readings.

  •   Non-Contact Voltage (NCV) & Live Line Testing

By selecting NCV mode, the tip acts as an inductive field sensor. Bringing the probe tip near live AC mains wiring triggers an audible beep and flashes the signal indicator bars on the LCD.

The display shows "EF" and increases beep frequency as you move closer to the live conductor, helping trace hidden cables behind drywall or identify broken wire conductors.

In "Live" mode, using just the front probe tip allows you to distinguish between Live and Neutral terminals in a mains socket.

Touching a Live conductor lights up the screen in red accompanied by a continuous alarm beep, whereas Neutral registers no alarm.

  •   Three-Phase Sequence Detection

A surprising inclusion on an instrument in this price tier is 3-phase sequence testing. By touching the probe sequentially to Phase A, Phase B, and Phase C conductors within a specified timing window, the display indicates whether the phase rotation is Forward ("P") or Reverse ("L"). This is a handy quick-check tool for verifying motor drives and three-phase industrial feeds without carrying a dedicated phase-rotation meter.

Key Specifications Summary

Below is a summary of the technical performance specifications for the ANENG A3008:

Limitations and Safety Considerations

While the ANENG A3008 offers excellent performance for its size and price, buyers must understand its inherent hardware limits and safety boundaries:

• No Current (Amperage) Measurement: Because of its pen form factor and single input terminal, the A3008 cannot measure AC or DC current (Amperes). If you need to measure loop current or circuit current draw, you will still need a conventional DMM or current clamp.
• High-Voltage Safety Rating Constraints: The device carries markings for CAT III 600V / CAT II 1000V. However, given its compact housing, lack of high-rupture capacity (HRC) internal fusing, and thin probe insulation, it is not recommended for high-energy industrial switchgear, solar string arrays, or main service entrance breaker panels. It is fundamentally designed for electronics bench work, automotive low-voltage systems, control wiring, and secondary appliance servicing.
• Sunlight Washout: As noted, the reverse VA screen is fantastic indoors but hard to read in direct, unshaded sunlight.

Final Verdict

The ANENG A3008 is an exceptionally versatile, highly accurate, and clever evolution of the compact digital multimeter. By pairing a 6000-count True RMS engine with an ergonomic pen-style body, interchangeable fine probes, and smart auto-ranging, it solves the "three-handed problem" of bench troubleshooting.

While it cannot replace a heavy-duty, fully fused industrial bench meter for high-energy mains work or current measurements, it excels as an everyday "first-reach" diagnostic tool for electronics engineers, hobbyists, field technicians, and automotive enthusiasts. Offered at an extremely accessible price, it delivers remarkable utility for any test bench or service kit.

Pros:

• Highly portable pen form factor; true single-handed operation.
• Impressive DC/AC voltage and resistance accuracy for its class.
• High-contrast display and probe LED flashlight for low-light work.
• Fast manual continuity buzzer.
• Includes fine-point screw-on gold tips for SMD probing.
• Powered by a single standard AAA battery.

Cons:

• No AC/DC current measurement modes.
• Reverse LCD display washes out in direct bright sunlight.
• Not suitable for high-energy industrial power circuits (CAT III/IV main distribution).

ANENG A3008 Pen Digital Multimeter

The A3008 delivers precise electrical testing with a 6000 counts digital display, ideal for accurate AC/DC voltage measurements and while providing auto range operation and intelligent sensor technology.

Buy Now

Please note: ElectronicsNotes makes a small commission on any sales that are made from links on this article.

  Written by Ian Poole .
  Experienced electronics engineer and author.
